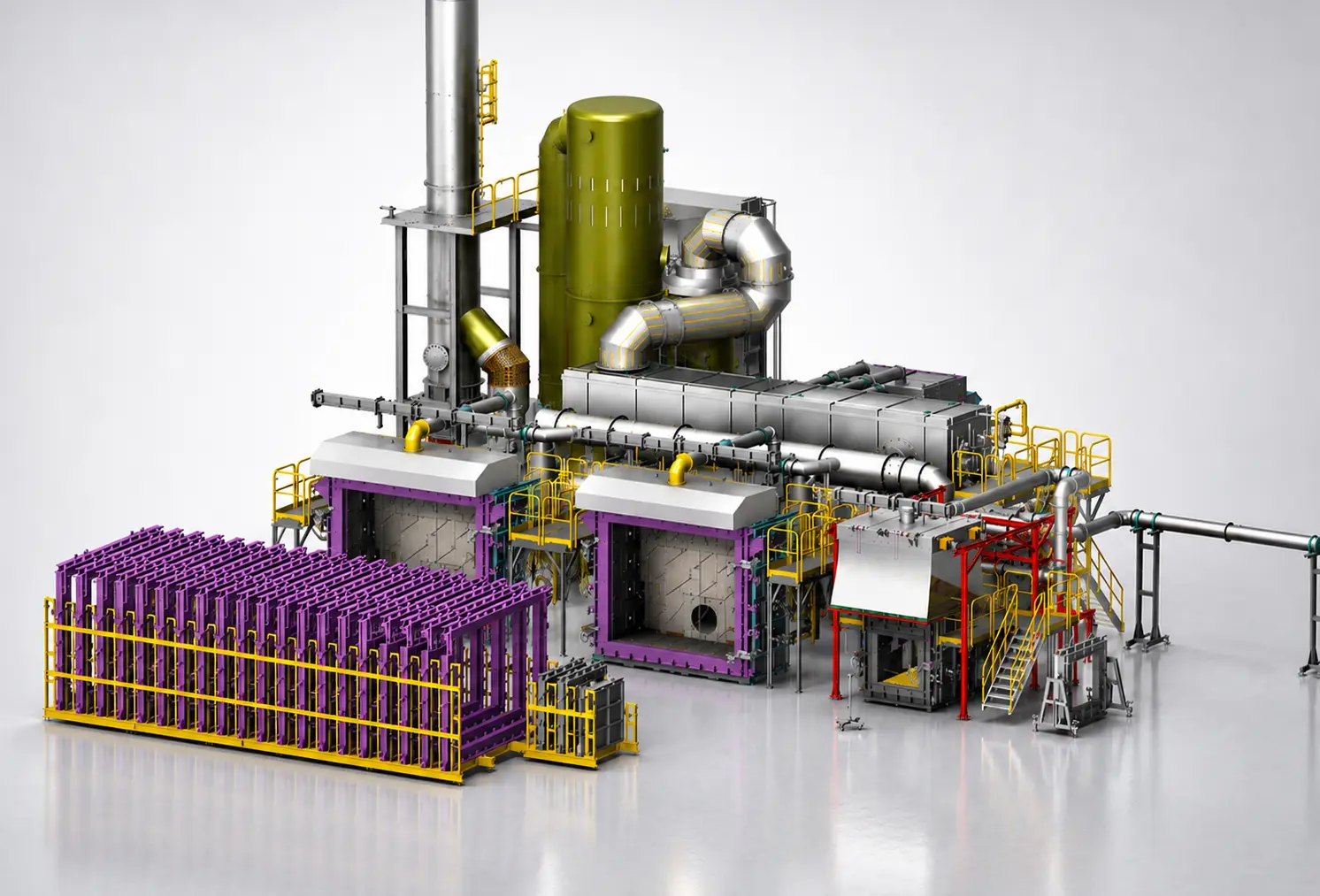

Fire Resistance Test Furnaces

The fire testing furnaces we develop are designed to perform fire resistance and smoke leakage tests for structural components and building materials such as walls, floors, doors, windows, beams, and columns in both vertical and horizontal configurations. Our systems are custom-designed in accordance with relevant standards and customer requirements. Thanks to this approach, they are actively used in numerous fire testing laboratories across more than 10 countries.

Furnace Types

- Vertical Fire Testing Furnaces,
- Horizontal Fire Testing Furnaces,
- Combi-Type Fire Testing Furnaces,
- Indicative Fire Testing Furnaces,
- Smoke Leakage Testing Furnaces,
- Steiner Tunnel Test Equipment,

Heating Curves

- ISO Curve,
- External Fire Curver,
- Slow Heating Curve,
- Hydrocarbon Curve,
- Modified Hydrocarbon Curve,
- Special Curves,
-Rijikswaterstaat Curve,

Tested Specimens

- Load-bearing and non-load-bearing structural elements,
- Ship ceilings, decks, and partition bulkheads,
- Partition walls and glazed partition systems,
- Fire doors and fire shutters,
- Penetration sealing systems,
- Aviation components,
- Cable barriers,
- Columns,
- Tunnels,
- Walls,

Other Testing Equipment

- Fire Damper Testing,
- Duct A/B/C,
- Smoke Exhaust Duct,
- Elevator Landing Door,
- Linear Joint Seal,
- Jet Fan,
- Sensors (Deformation, Radiation),

Maximum Loaded Test Capacity

Up to 300 Tons

Heating System

Natural Gas, LPG, Diesel Fuel, Propane, etc.

Compliance Standards

ISO834(1,4-9) ; BS476 (20-24) ; EN1363(1-2); EN 1364(1-2) ; EN1365(1-4); EN 1366(1-3); ASTME119; ASTME814; ASTM E1966; UL263; UL1709; UL1479; UL2070; UL10(B-C); ISO6944; ISO3008; ISO3009;

Control Systems

PLC-Based Automation System & SCADA System

Fully automatic pressure, temperature, and deviation control

Recipe-based test management

Modular Furnace

Our special modular design developed for fire resistance test furnaces has been realized through an engineering approach patented by our company. In this design, each furnace consists of standard modular sections equipped with multi-purpose openings that allow integration of burners, observation windows (oculus), exhaust systems, and video camera systems.

Thanks to our patented Flexy Technology approach, standard furnace configurations can be easily adapted, enabling reliable and controlled fire testing of very large and high-scale specimens such as nuclear power plant doors or large tunnel cross-sections.

Curtain Smoke Hood

The Curtain Smoke Hood is a specially designed system patented by our company, operating in connection with the main exhaust line. It ensures the efficient extraction of smoke generated during testing through an appropriate fan system.

Its retractable structure during test preparation provides speed and operational flexibility, while the controllable up-and-down curtain mechanism delivers maximum ease of use and a safe working environment.
